UNICOL has developed an outdoor display solution for the UK's largest pub chain.

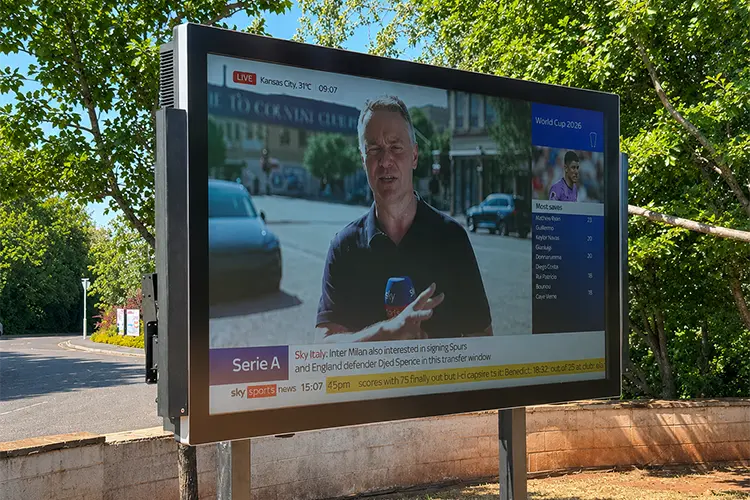

The company has supplied its new Outdoor 'H' Frame to the UK's leading pub operator through AV integration specialist Chantry Digital. This freestanding stainless-steel structure was developed to meet the growing demand from the hospitality sector for robust outdoor display installations capable of withstanding harsh weather conditions. Following the successful pilot installation of a 98-inch display at one of the operator's venues, the project will now be rolled out to pubs across the UK.
The project originated from the hospitality sector's changing approach to outdoor spaces following the pandemic, as many pub operators began rethinking how these areas could be used. Chantry Digital, which has collaborated with UNICOL on numerous projects, identified the need for 86-inch and 98-inch displays that were vandal-resistant, IP67-rated, high-brightness and anti-glare, capable of remaining permanently installed in pub gardens and terraces while providing maximum visibility to the largest possible audience. The search for the right solution began in late summer 2025, and it quickly became clear that the mounting infrastructure needed to match the project's demanding requirements.

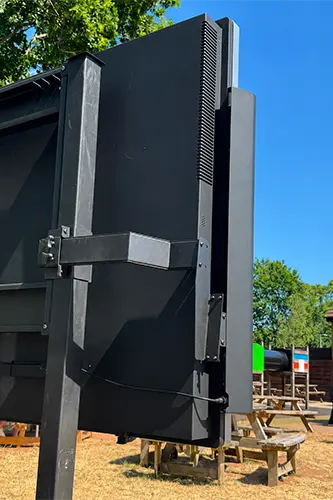

UNICOL's Outdoor H Frame was designed specifically for this type of application and is compatible with displays ranging from 65 to 98 inches. Manufactured from stainless steel to ensure a long service life and corrosion resistance in all weather conditions, it stands approximately 2.5 metres high to optimise visibility. Its legs can be cut to the required length for each installation and feature bolt-down feet that provide outstanding strength and stability.
In addition, the structure is compatible with UNICOL's Outdoor Housing range and enables the direct mounting of IP-rated outdoor displays through a dedicated adapter that guarantees a precise fit.
For this project, the outdoor displays feature an IP67 rating for continuous outdoor operation, 3,000 cd/m² brightness for excellent visibility in direct sunlight and an anti-glare screen with a hardened 3H coating. Designed for 24/7 continuous operation, they incorporate a heavy-duty AISI 304 (EN 1.4301) steel construction and are prepared for mini-PC integration with 230V power, RJ45 connectivity, audio output and VESA 75-200 mounting compatibility. Each display carries an IP67 waterproof rating, while the rear enclosure is rated IP65 and the units also feature an IK10 vandal-resistance rating.
Neil Hawker, Managing Director of Chantry Digital, explains how the solution was developed:
We've worked with UNICOL on many projects, and for this one they designed the posts together with dedicated loudspeaker brackets. Their design team is well known throughout the industry for the quality of its products. We simply explained what we needed, they produced the initial drawings, and together we refined the design until we reached the final product.
Following the success of the pilot installation, the solution is now set to be deployed at venues across the United Kingdom.
This project demonstrates how UNICOL's collaborative approach—working closely with AV integrators to design and refine bespoke mounting solutions—delivers reliable results even in some of the most demanding environments, from exposed pub gardens to busy outdoor hospitality spaces.
