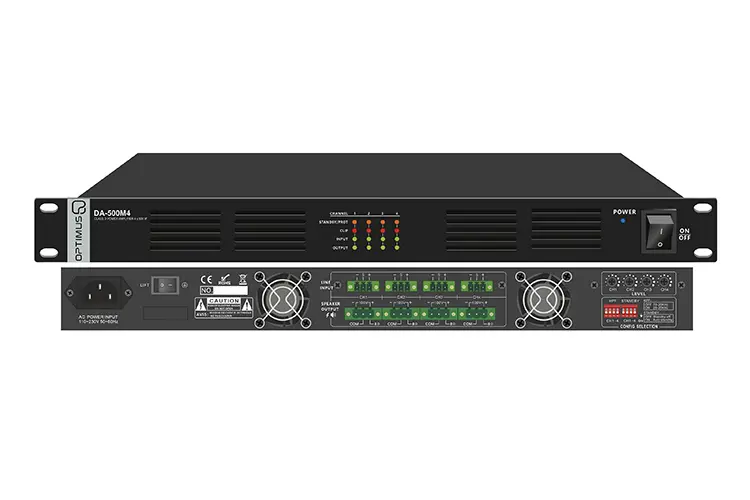

OPTIMUS expands its range of digital amplifiers with the new DA-500M4.

This is a 4×500 W RMS model in 100 V line (or 4×320 W RMS at 8 Ω) that maintains the compact 1U format for a 19" rack, but with a significant leap in power and features.

Evolution of the DA-240M4 Series

The DA-500M4 emerges as the continuation of the well-known DA-240M4 series, present in numerous public address and distributed sound installations. The philosophy remains the same: compact equipment, easy to install and operate, with everything needed to work in demanding professional environments.

The main novelty is the doubling of power, responding to the demand of integrators who need to cover larger-scale projects without complicating configuration or occupying more rack space.

Technical design and features

The new model incorporates four independent Class D stages, each with:

• Balanced input
• Individual volume control
• Selectable high-pass filter (HPF)

This arrangement allows separate management of speaker zones or circuits, adjusting levels and low-frequency filtering without the need for additional processors.

The design is completed with:

• Universal 110–230 V AC power supply, adaptable to different electrical environments
• Dual internal fan system ensuring thermal stability during continuous operation
• Status LED indicators, useful for quick diagnostics and on-rack verification

Real power measured under operating conditions

One highlight is how the specifications are defined. OPTIMUS measures power under real working conditions: a continuous 1 kHz signal for more than one hour, providing reliable RMS values that are useful for sizing speaker lines. For integrators, this precision makes planning distributed sound projects easier, avoiding the overestimations commonly found in spec sheets with theoretical figures.

Audio quality and protections

The DA-500M4 guarantees stable operation even in demanding environments, thanks to its protection systems against:

• Short circuits
• Overloads
• Signal peaks
• Overheating

In terms of sound performance, the amplifier offers a signal-to-noise ratio greater than 80 dB and total harmonic distortion below 0.1%, ensuring a clear and fatigue-free reproduction in public address and sound reinforcement systems.

Applications

The compact format and available power make the DA-500M4 an especially suitable solution for:

• Public buildings and infrastructures with multiple broadcast zones
• Industrial facilities with long speaker lines
• Shopping centers and retail spaces requiring uniform coverage
• Hotels and resorts needing integration of public address, background music, and security systems

Availability

The new DA-500M4 is now available through the OPTIMUS distribution network. Its combination of higher power, easy installation, and compact format strengthens the company’s range of digital amplifiers and provides integrators with a suitable tool for medium- and large-scale projects.
