The AVE among network cables impresses with a bandwidth of up to 40 Gbit/s and a frequency of 2000 MHz.

This makes the new CAT cable the perfect choice for high-speed structured cabling networks in data centers, medical technology, or military communications.

The CAT.8.2 cable (art. no. 580-0828FC) offers the maximum safety thanks to its halogen-free LSZH (Low Smoke Zero Halogen) jacket. It meets the stringent requirements of the CPR fire protection class B2ca (difficult to ignite, low heat release) and complies with the IEC 60332-1-2 and IEC 60754-1/2 standards.

Its double shielding, consisting of individually shielded twisted pairs (PimF) and an overall copper braid, ensures an interference-free transmission even in harsh environments. Whether Power over Ethernet (PoE/PoE+/PoE++) up to 100 watts, VoIP, or data transmissions, the SC-Mercator guarantees maximum reliability.

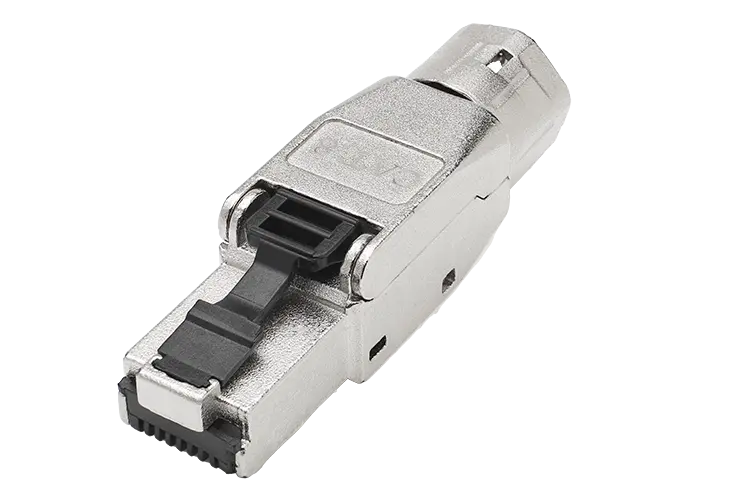

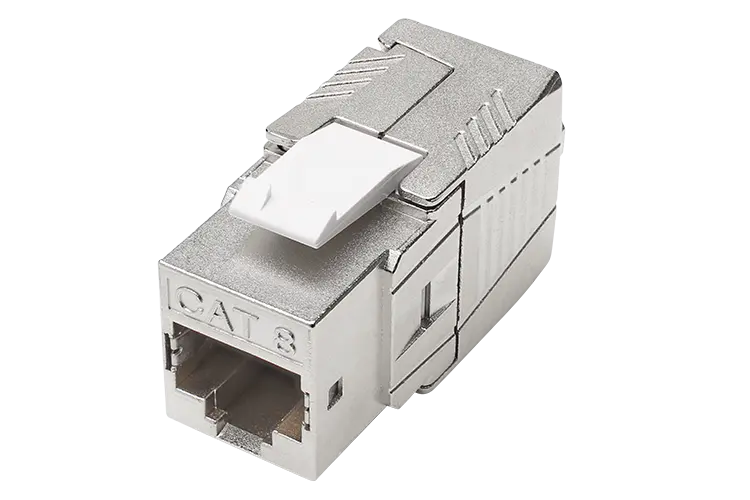

Another outstanding feature is the compatibility with GG45 and AR45 connectors, in addition to the standard RJ45 interface, offering greater flexibility when selecting the infrastructure.

The cable meets all the requirements of application classes 1 and 2 (CAT8.1 and CAT8.2), which provide a maximum link length of 30 m (98.4 ft) and is also backward compatible. Therefore, it also meets the categories CAT.7a, CAT.7, CAT.6a, CAT.6, CAT5e, and CAT.5.

Thanks to its GHMT certification, the SC-Mercator is a secure investment for future-proof networks. It combines top performance with safety and flexibility, making it an excellent solution for anyone who values high-quality network technology.
